2003-2007 Dieselsite 6.0L Head Studs

Use Dieselsite 6.0L Head Studs on the following vehicles:

2003-2007 Ford F-Series Trucks with 6.0 Liter Powerstroke Diesel Engine

2004-2010 Ford E-Series Vans with 6.0 Liter Powerstroke Diesel Engine
2003-2005 Ford Excursion w/ 6.0 Liter Powerstroke Diesel Engine

Includes:

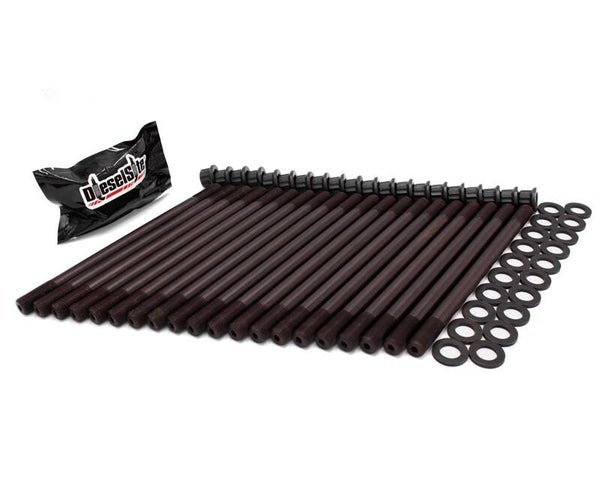

20 Dieselsite Head Studs
20 Dieselsite12-point nuts
20 Dieselsite Hardened Washers

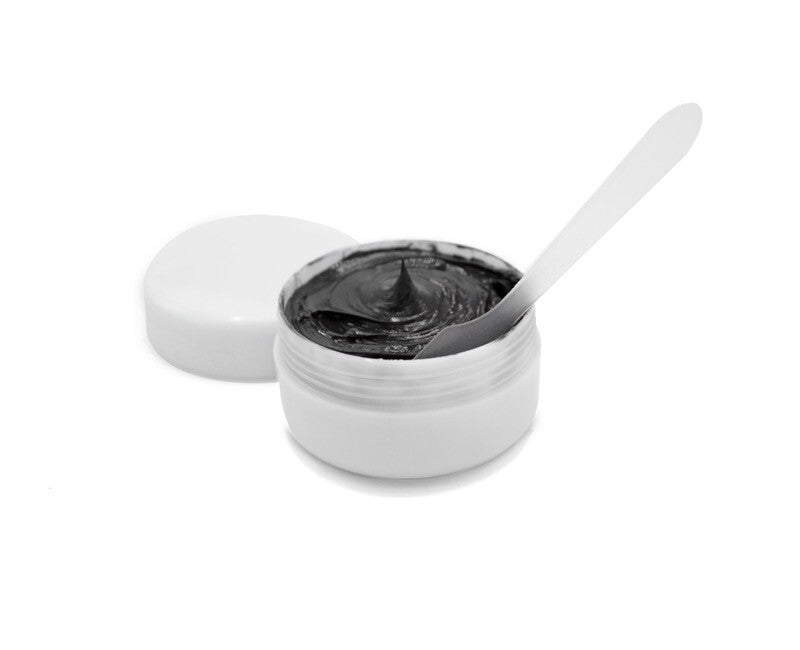

1   Container of Dieselsite Fastener Assembly Lubricant

• INSTALLATION FOR HEAD STUD KITS1. Inspect all hardware prior to installation. Look for defects or shipping damages, plus proper fit, length and dimension.
• 2. To ensure proper thread engagement and accurate torque readings, clean ALL threads in the block. Chase if necessary with a Thread Chaser.
• 3. Screw head studs into the block “HAND TIGHT ONLY” Use Allen key drive only to get stud past small restriction in the threads.
• RELOAD (TORQUE) RECOMMENDATIONS
• Rated at 220,000 psi tensile strength
• Following the manufacturers recommended torque sequence tighten the nuts in three equal steps to the following using Dieselsite Fastener Assembly Lubricant on studs, washers and nuts.

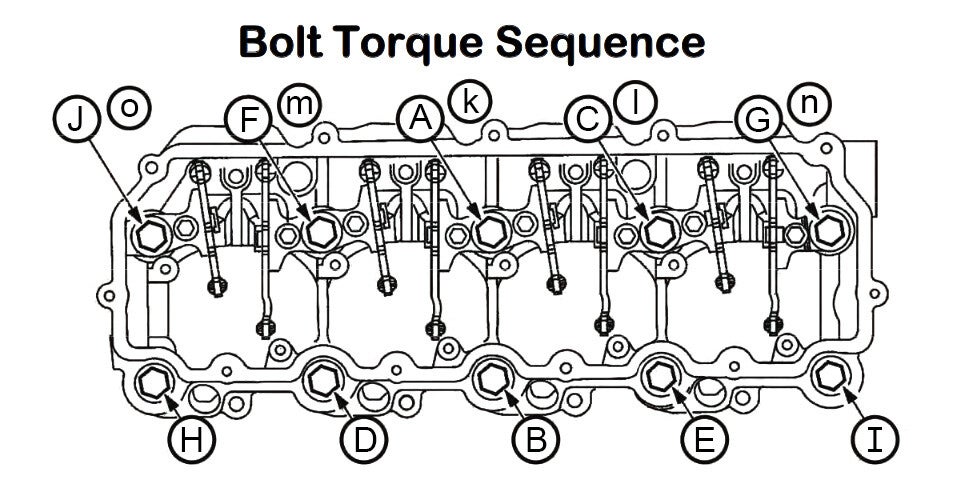

• Studs A-J:

• • • First step tighten to 75 ft-lbs. Second step tighten to 150 ft-lbs. Final Torque 220 ft-lbs.


• Bolts k-o

•          Tighten each bolt to 23 ft-lbs.  No sequence is needed after Head Studs have been torqued.
