DIESELSITE 6.0L Ford Injector Control Pressure Sensor
$105.00
FREE shipping
This is a replacement ICP sensor for the 6.0L Ford PSD light duty diesel.
MODEL AND VARIATIONS:
There were two locations and thus two sensors used on the 6.0L Ford PSD.
With the early 6.0L oil system, the sensor is located at the top of the pump cover.On the late 6.0L oil system, the sensor was located to the valve cover. To help seal, there is a flange built in.
With the early 6.0L oil system, the sensor is located at the top of the pump cover.On the late 6.0L oil system, the sensor was located to the valve cover. To help seal, there is a flange built in.

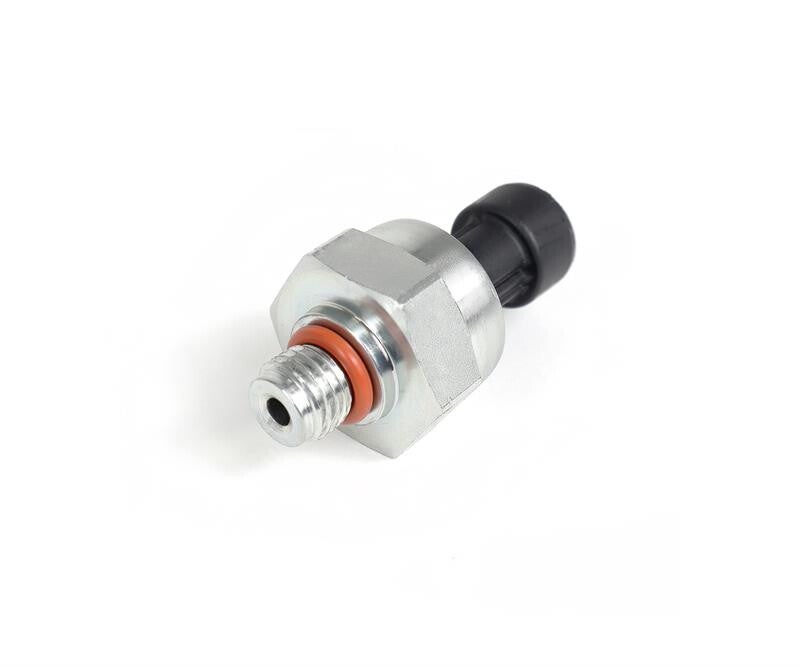

• 2003 - 2004 [Early]
Sensor is located at the top of the high pressure oil pump cover.
Cross reference: 3C3Z-9F838-AA

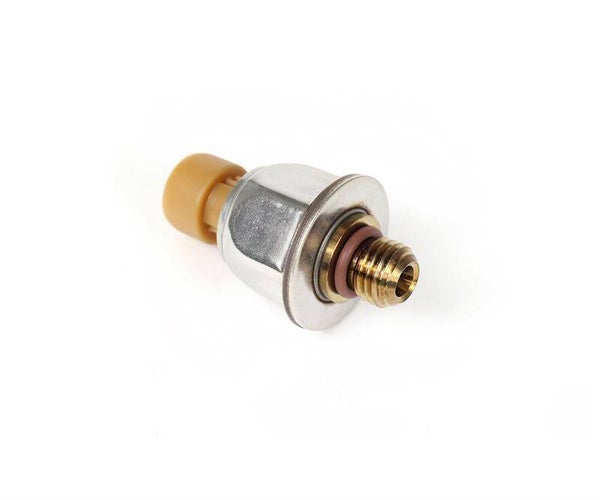

• 2004.5 - 2007 [Late]
Sensor is located in the valve cover.
Cross reference: 4C3Z-9F838-A
Choose the appropriate model ICP sensor based on your location and needs.
